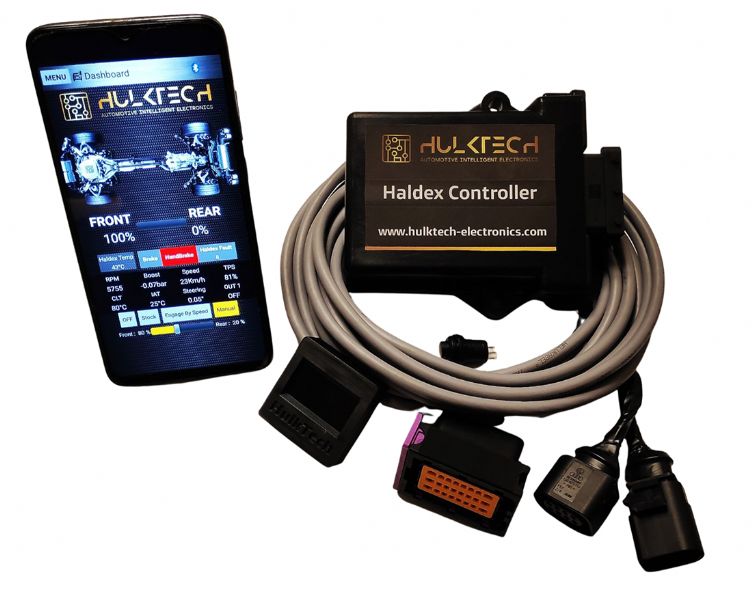

HulkTech Haldex Controller Gen1

Gen1

Plug and Play Wiring :

• No cut oem wiring loom,No modification to oem Haldex controller needed

​
​​​​Full OEM functionality:

• ​​Diagnosis is working with VCDs or any obd2 tester, no extra fault codes

OLED Multiple Dashboards (Multi Gauge):

• RPM (Revs per Limit)
• VSS (Vehicle Speed Sensor)
• CLT (Coolant Temperature)
• IAT (Intake Air Temperature)
• TPS (Throttle Position Sensor)
• Steering Angle
• Engine Oil Temperature
• Etc.

Haldex Diagnose:

• Error Code
• Feedback Position
• Haldex Temperature
• Etc.


• Multi Switch Function (By Preset, Manual)
• Rotary Multi Switch encoder (Extra option-future, will be available soon with an update)

• Connect via Bluetooth with Android Application

• Compatible Android Versions from 4.4 until latest versions

• Next Gen Android Application with frequently updates, Dashboard Real time fast Data, Preset, Advanced Tune settings, and more features

• Custom Bluetooth PIN Code

• Ultra-Fast Refresh Rate for Displaying Values (Android App and OLED Display simultaneously)

4 Preset Mode:

• Off (Haldex Pump Off, for Burnout)
• Stock (OEM functionality without modification)
• Engage By Speed (Adjust Lock ratio by Speed points)
• Manual (Lock to a desired fixed ratio)
• Engage by Table (With feature Update)

• Steering Angle Correction (Disable Haldex above Steering Point Angle)

• Throttle Position Angle Correction (Disable Haldex below Throttle Point Angle)

• Full Brake System Functionality (Handbrake, Brake)
  Brake Ignore Option

Standalone Function :
It can be installed as standalone controller to any car with haldex differential (compatible list)

• Digital inputs for RPM, SPEED, etc.

• Analogue Inputs for TPS, MAP, etc.

• Custom Map calibration

• Custom TPS calibration

OBD2 Support (Autoscan and Initialize Protocol) (Fast and Easy Installation)

• Option to select data received from OBD2

VAG TP 2.0 Protocol:

• Option to select data received from VAG TP 2.0

Outputs:

• 2 Parametric Output

​Example use:

• Fuel Pump, Nitrous
• Methanol ON-OFF, etc.
• Methanol with pwm output will be available soon with an update (extra charge)
• Option to add Boost Controller plug in Update with extra charge (1 output reserve)

Hardware :

• Next Gen 32Bit Processor
• Built-in Bluetooth Controller
• Built-in Wifi Controller
• Future Proof: Frequently Updates for Android Application and Device Firmware over Wifi
