GEARTECH ENGINEERING - Hulktech Advanced Display 3.5

Hulktech Advanced Display 3.5

Description

Introducing the Hulktech Advanced Automotive Display - Redefining Your Vehicle's Control Center

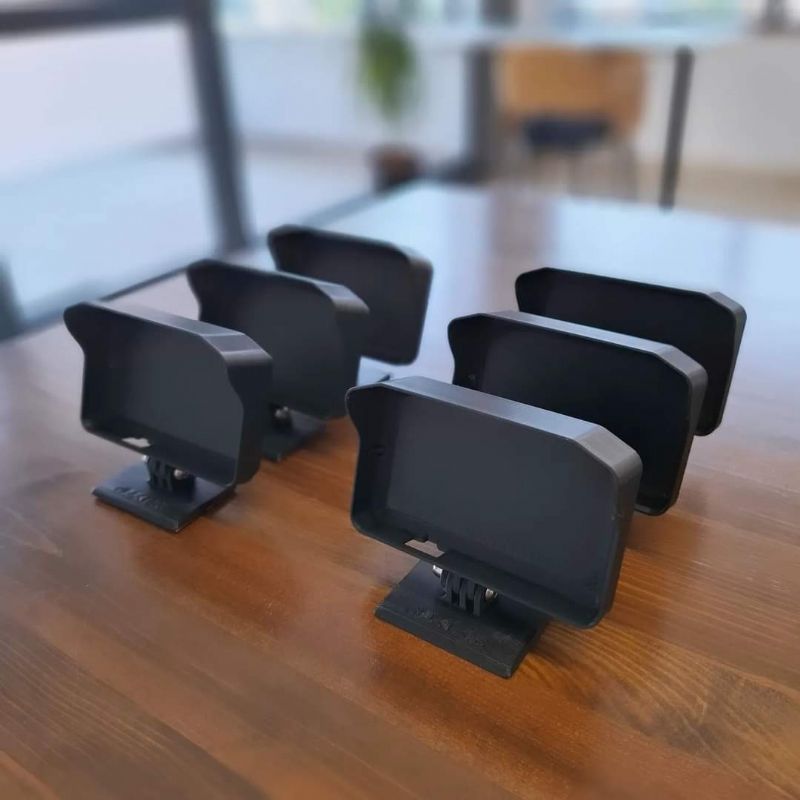

Are you ready to experience a new level of control and monitoring for your vehicle? Look no further than the Hulktech Advanced Touch Screen Display, a cutting-edge 3.5" touch display encased in a high-quality aluminum casing, designed to meet your every automotive need. Our commitment to innovation and customer satisfaction makes this display truly exceptional.

Key Features:

1. Touch Screen Interface: High sensitivity touch screen interface, making it incredibly user-friendly. Accessing and customizing your vehicle data has never been easier.

2. Universal Compatibility: The display connects via the CAN bus communication protocol and is compatible with most standalone ECUs(Ecumaster,AEM,Motec,Link,Maxx ECU,Hondata and many more). It also supports OBD2 protocols for vehicles equipped with OEM ECUs.

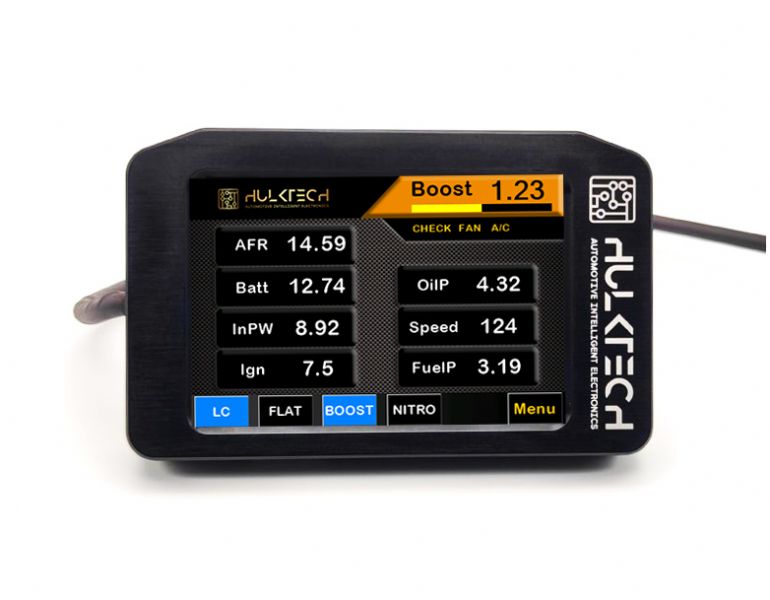

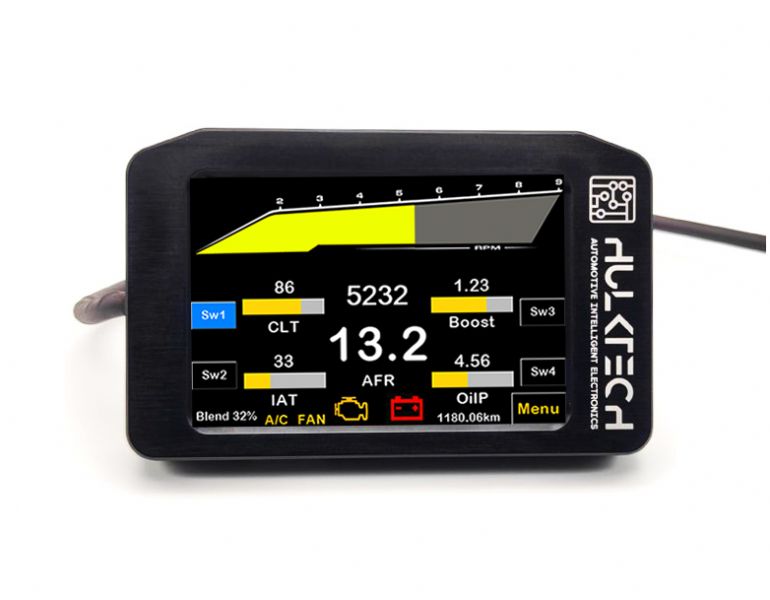

3. Impressive Visuals: The display features dynamic graphical bars that effectively present a wide range of information. Customize your display with a choice of six colors to match your unique style and preferences.

4. Multi-Page Display: Navigate and customize the visual data variables across three pages, each capable of displaying up to eight values at an impressive refresh rate.

5. Custom Touch Buttons with User-Defined Labels: Take complete control with customizable touch buttons easily configured through the display menu. These buttons not only transmit and receive CAN bus messages but also allow users to assign personalized labels for each button. This feature enables users to specify the function of each button, such as enabling nitrous, adjusting pressure presets, managing traction control, and many more.

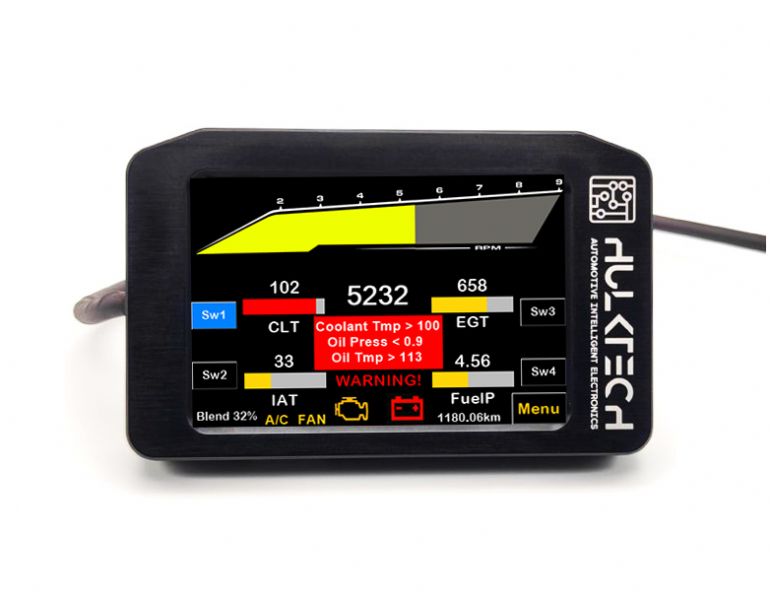

6. Critical Alerts: Ensure safety with custom warnings for essential parameters such as coolant temperature, oil pressure, oil temperature and many more. Receive visual alerts displayed on the screen to stay informed about potential issues.

7. Record Peak Values: Easily track maximum readings of key sensors—like RPM, Boost, EGT, Coolant, Oil Temperature and injection duty cycle—since the car's start, providing crucial data at a glance.

8. Sensor Integration: 2x Analog inputs compatible with a variety of automotive 5V sensors. Easily modify and label these inputs through the display menu, enabling monitoring of pressure, temperature, fuel level and more.

9. Output Control: 2x Low-side outputs, each with a 5A rating, which can be customized through to suit your specific needs. These outputs can be utilized to activate various functions such as controlling methanol systems, fuel pumps, nitrous systems, switching fan control, and a complete range of other applications.

10. Check Engine Functionality: The system can display error codes from standalone ECUs and OBD2 systems while also offering the option to clear these errors for effective troubleshooting and maintenance.

11. Traction Control: Monitor each wheel's speed and even display live tire temperatures using an aftermarket Infrared CAN Tire Temperature Camera (like ecumaster). Get the data you need to improve your vehicle's performance(available via cloud wireless update).

12. Shift Light Integration: Connect your Hulktech Shift Light Bar with 8 RGB LEDs and customize their behavior(Color, Brightness) through the display menu.

13. Custom CAN Bus Messaging: Display the specific variable data you need by customizing CAN bus messages, ensuring the interface meets your unique requirements (available via cloud wireless update).

14. Datalogging: Record and analyze performance data with the option to write to an SD card for later analysis on your Windows PC using the Hulktech Datalog Module (available via cloud wireless update).

15. Advanced GPS Integration: Enhance your driving experience with the option to add Hulktech GPS module, capable of recording various vehicle performance metrics, including 0-100,0-200,100-200 km/h, 1/4 mile ,1/2mile stats and also user define metrics, all available via cloud wireless update.

16. Update Capability: The display is equipped with built-in Bluetooth and Wi-Fi, allowing real-time updates via your Android device (mobile, tablet, etc.) for seamless display maintenance. Through these updates, not only can you ensure the latest software enhancements and improvements, but you'll also have the ability to enable new features and add exciting functionalities to enhance your user experience.

The Hulkteck Advanced Display is more than just a display.it's a dynamic control center for your vehicle. With its endless customization options and future-proofing through Wi-Fi updates, it's a product that evolves with your needs and the automotive industry's advancements.

Drive smarter, drive safer, drive with confidence - choose Hulktech Advanced Display. Your vehicle's potential is limitless, just like our display.
